Aged Brass / Aged Brass
Available Options
#techlighting_official

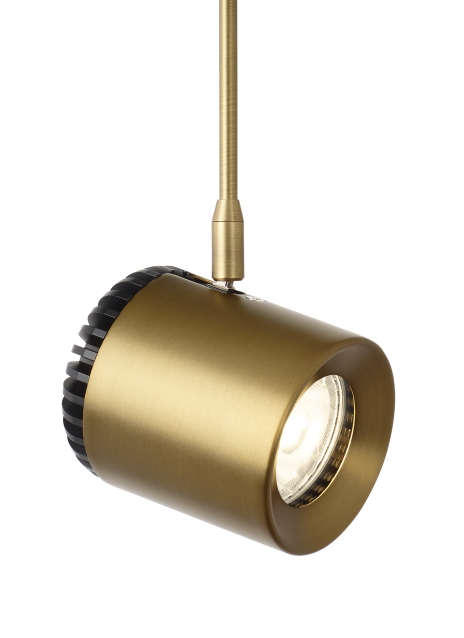

BURK HEAD

The Burk display head by Sean Lavin combines design simplicity with practical technology. Inspired by telephoto camera lens this simple display head houses a powerful LED source harnessed by field changeable optics for the most precise beam control. The Burk head is highly customizable featuring a plethora of finishes, beam spreads, lamping and stem lengths. Further customize the Burk head by combining it with any complementary VC Modern free-jack or rail system. This low-voltage display head is ideal for commercial lighting applications such as retail stores, libraries and galleries. Available in modern finishes. The Burk ships with your choice of 18 degree or 40 degree field changeable optics or integrated lens holders (both sold separately).
  • From the brand formerly known as Tech Lighting
  • High-tech display head that combines simplicity with practical technology
  • Telephoto camera lens inspired design
  • Highly customizable featuring a plethora of finishes, beam spreads, lamping and stem lengths
  • Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")
  • Pivots 88° and able to point straight down
Includes field replaceable 14.2 watt, 634 delivered lumen, 2700K, 3000K or 3500K field replaceable LED module. Dimmable with most LED compatible ELV or Triac dimmers. Choice of 18° or 40° field changeable optics. Integrated lens holder accommodates up to two MR16 sized lenses or louvers (sold separately). As a general rule when using the Burk head, we do not recommend using greater than 70% of the maximum wattage specified for the low voltage transformer due to inrush current requirements. For assistance in calculations, please contact Technical Support.
Spec SheetInstructionsHigh Res ImagesIESRevitSketchUp
Line Art
Eggcrate Louver
BUY LOCAL
BUY ONLINE

Item Builder

Generate your item by selecting an option from each category below. Once you have chosen all options, your part number will be generated below.
 TYPE
 700
 System
 MODEL
 BRK
 CRI
 Color Temp
 Beam Spread
 Length
 Finish
 Lamp

Compatible with following accessories. 140MR16DF DIFFUSOR LENS MR16/PAR16 *** 140MR16LL LINEAR SPREAD LENS MR16/PAR16 *** 140MR16SB SANDBLASTED LENS MR16 *** 140MR16SF SOFT FOCUS LENS MR16/PAR16 *** 700A02-BK EGGCRATE MR16/PAR16 BLACK

700

Select Skus are discontinued and have limited inventory - Contact Us for more information

view spec sheet download spec sheet
