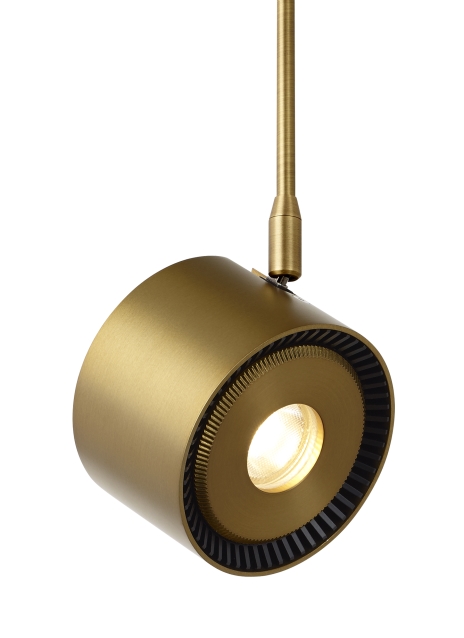

ISO HEAD

The Iso display head by Sean Lavin combines sleek design with lighting precision. Light hits in the desired location with beam spreads of 20 degree, 30 degree or 50 degree. These wide ranges of light spread are made possible with the Iso due to its full 360 degree head rotation and 90 degree pivot. Customize the Iso by combining it with the complementary Monorail or Monopoint systems by Sean Lavin for VC Modern. Available in modern finishes. This low-voltage display head is ideal for commercial lighting applications such as retail stores, libraries and galleries.
  • From the brand formerly known as Tech Lighting
  • Sleek and contemporary design combined with lighting precision
  • Wide range of beam spreads, 20°, 30° or 50°
  • Complementray Monorail or Monopoint systems by Tech Lighting
  • Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")
  • Ideal for commercial and residential lighting applications
Includes 16 watt, 704.1 delivered lumens, 3000K, 90 CRI field replaceable LED module. Dimmable to 10% dimmer type determined by low-voltage transformer. The head rotates 360° and pivots 90° to direct the beam. As a general rule when using the ISO Head, we do not recommend using greater than 70% of the maximum wattage specified for the low-voltage transformer due to the inrush current requirements. For assistance in calculations, please contact our Technical Support Department.
Line Art

Item Builder

Generate your item by selecting an option from each category below. Once you have chosen all options, your part number will be generated below.
 TYPE
 700
 System
 MODEL
 ISO
 CRI
 Color Temp
 Beam Spread
 Length
 Finish
 Lamp

2700K not available with 90 CRI
MP includes 4" Round Flush Canopy.
Due to weight capacity issues, do not exceed a 45 degree angle. For custom stem lengths, please contact the Quotes Department.
