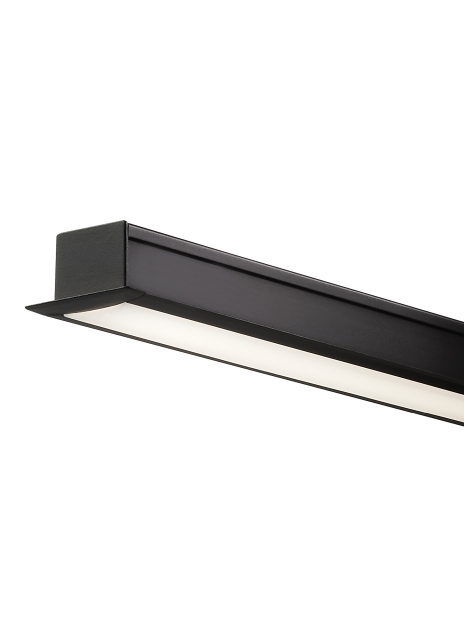

RECESSED FLANGED 0606
ESSENCE architectural light channels provide premium, made-to-order, specification grade, high color quality 24VDC linear task and accent lighting solutions. Backed by short lead times and impeccable service, ESSENCE is easy to specify and install.
Premium Color Quality and Consistency
- U-Series Static White. 1-step color consistency, CRI 97+, R9 95+, Rf 95+, Rg 100
- P-Series Static White. 2-step color consistency, CRI 95+, R9 90+, Rf 90+, Rg 95-105
- Warm Dim. 2-step color consistency, CRI 95+, R9 90+, Rf 90+, Rg 95 Clean Aesthetic with Minimal Shadowing
- Concealed mounting hardware, minimal end cap thickness (0.04” thick)
- Tight LED pitch (Static White. 72 LEDs/ft. Warm Dim. 52 LEDs/ft). White Lens eliminates pixilation for Static White
- Concealed joiner allows individual segments to be joined with minimal shadowing Ease of Specifying and Installation
- Factory Assembled and Field Assembled options available
- Fixtures available in 1-inch increments up to 50 ft, length includes flange
- Fixtures longer than 8 ft contain multiple equal length segments that are joined in the field
- Includes mechanical Mounting Clips for ceiling and wall mount Application Versatility
- Standard phase dimming down to 0.2% and Lutron Hi-lume Ecosystem down to 0.1% and eldoLED 0-10V down to 0.1%
- Registered CEC appliance database. Can be used to comply with CEC 2019 title 24 part 6
- ETL listed Class 2, Damp listed. approved for use in closets and storage spaces per NEC Article 410.16
Includes 95+ CRI LED tape and available in 2400K, 2700K, 3000K, 3500K, 4200K Static White and 3000K-1800K Warm Dim.
